Model NO.
ArR-168
MOQ:
500 pieces
Port of Loading:
Ningbo or Shanghai
Quantity:
  • Warranty:1 year
  • Customized support:OEM, ODM, OBM
  • Place of Origin:Zhejiang, China
  • Brand Name:RICHU
  • Model Number:ArR-168
  • Product name:300bar Service Brass Argon Gas Regulator With Flow Gauge
  • Material:Brass Gas Regulator
  • Suitable gas:Oxygen,Argon,Co2,Nitrogen, Helium, N2O, Air
  • Application:Industrial
  • Gas type:Oxygen,Argon,Co2,Nitrogen, Helium, N2O, Air
  • Type:Industrial
  • Certification:N/A

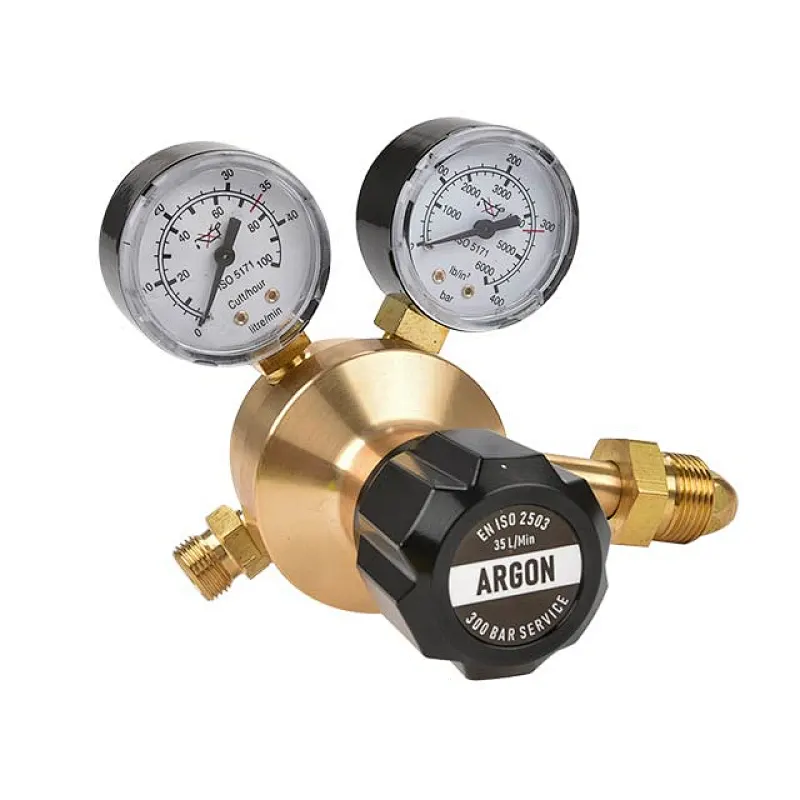

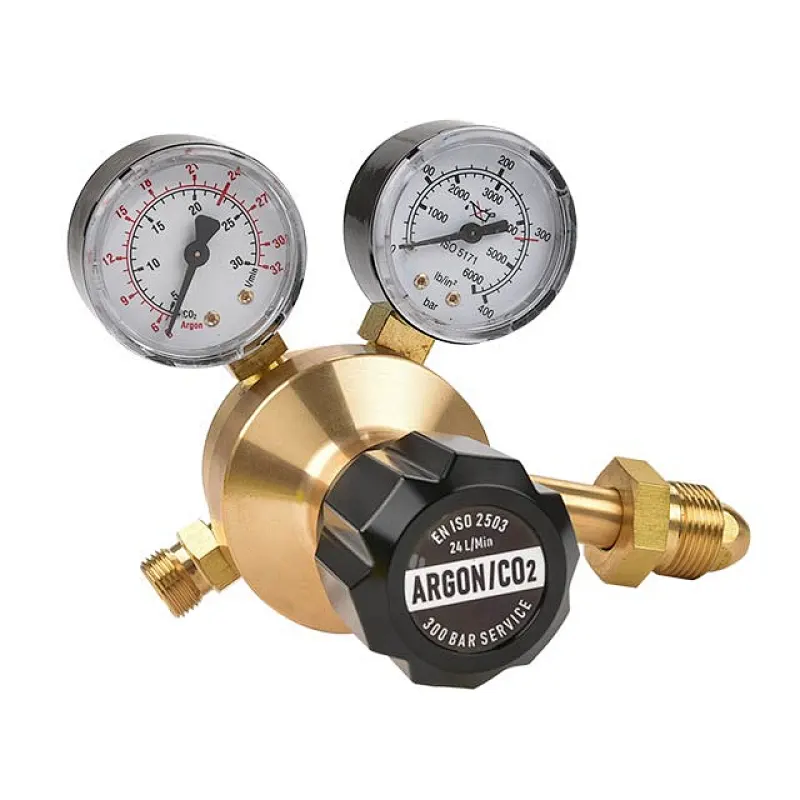

300bar Service Brass Argon Gas Regulator With Flow Gauge for TIG Welder
Features:

1. For 300bar cylinder

2. Strong forged brass body for maximum strength.

3. Diaphragm type construction.

4. Designed for use with TIG and MIG welding processes, giving the welder accurate and precise flow control.

5. Sintered metal inlet filter to trap impurities.

6. With Strengthened big nut to ensure more durable and safety.

7. No soldered joints for easy maintenance.

8. Specially designed encapsulated valve ensures safety in use

9. Our product is in conformity to the standard EN ISO 2503.

10. 100% leak testing, pressure test, function test and visual inspection.

Specifications:

Specifications:

Model

OR-168

LR-168

ArR-168

AR-168

Gas

OXYGEN

LPG

ARGON/CO2

ACETYLENE

Max Input pressure(Bar)

300

20

300

20

Working pressure(Bar)

10

2

7.5

1.5

Flow (m3/h)

30

5

24L/min

5

Gauge pressure range(High/Low)

400/16

3

400/32L/min

40/2.5

Inlet connector

0.860-14

G5/8-14-LH

G5/8-14

G5/8-14-LH

Outlet connector

G3/8

G3/8-19-LH

G3/8-14

G3/8-19-LH

300bar Service Brass Argon Gas Regulator With Flow Gauge for TIG Welder

Company Information

Ningbo Kimpin Industrial Pte Ltd. is specialized in designing & manufacturing a wide range of industrial gas welding/cutting equipment, gauges, regulators, cutting/welding torches, safety apparatus, related accessories and medical therapy and suction devices.

As a professional supplier of welding equipments, we have built up our own experience in machining, quality control and testing in the past 20 years. The parts of our products are machined by CNC. Every product is 100% inspected and tested strictly before delivery.

Our brand"RICHU"is a famous brand in China. Our company has passed ISO9001 Certification. The products are UL listed and CE marked, the safety gas valves and gas shut-off valves are CSA listed. The design and construction have been treated to meet the full requirement of EN ISO standard, such as EN ISO 2503,EN ISO5172, EN730-1,EN ISO 562 and EN ISO 837-1…etc.

With sincere earnestness and honesty, we are sure that we will impress our customers with our good quality and excellent services. We are looking forward to establishing long term business relationships with worldwide customers.

FAQ

1. Q: Are you manufacturer or trader?

A: We are the most professional manufacturer in China for gas equipment. We have one factory producing gauges and regulators, and another factory producing cutting, welding torches and nozzles.

2. Q : Do you have UL to USA ?

A: Yes, we have UL certificate for gauges,regulators and torches.

3.Q: Do you have CE?

A: yes we have CE for gauges and some regulators.

4. Q: what is your quality control system?

A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.

5. Q: What’s the delivery time?

A: Usually it takes 30-35 working days after customer confirms the order.

6. Q: What'S your warranty terms ?

We offer 1 year warranty for materials for all our products For quality problem.

7. Q: About OEM ?

A: OEM is welcome, special packing design free.
