Model NO.
YR-88-3
Minimum order quantity:
1 piece
Port of Loading:
ningbo or shanghai
Quantity:
  • Warranty:1 year
  • Customized support:OEM, ODM, OBM
  • Place of Origin:Zhejiang, China
  • Brand Name:RICHU
  • Model Number:YR-88-3
  • Suitable gas:Oxygen
  • Product name:Medical Oxygen Regulator
  • Material:Brass
  • Application:Hospital
  • Type:Ragulator
  • Name:Oxygen Gas Cylinder Regulator
  • Gas type:Oxygen
  • Color:Green
  • Accuracy of Gauge:Class 2.5
  • Certification:CE

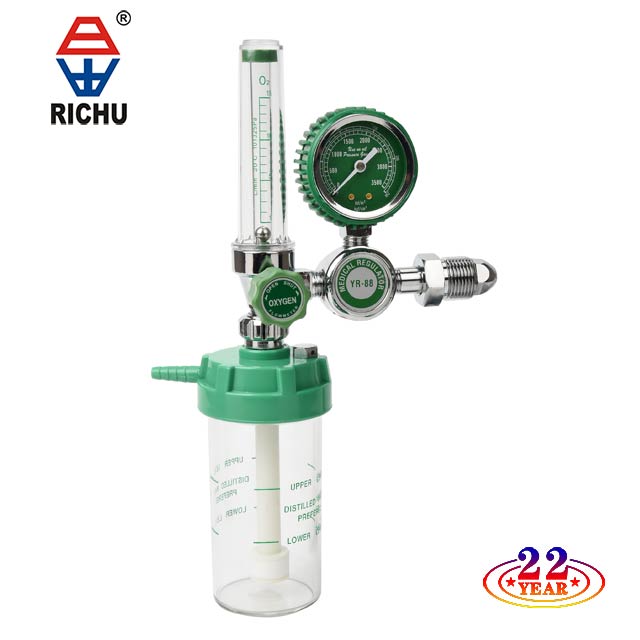

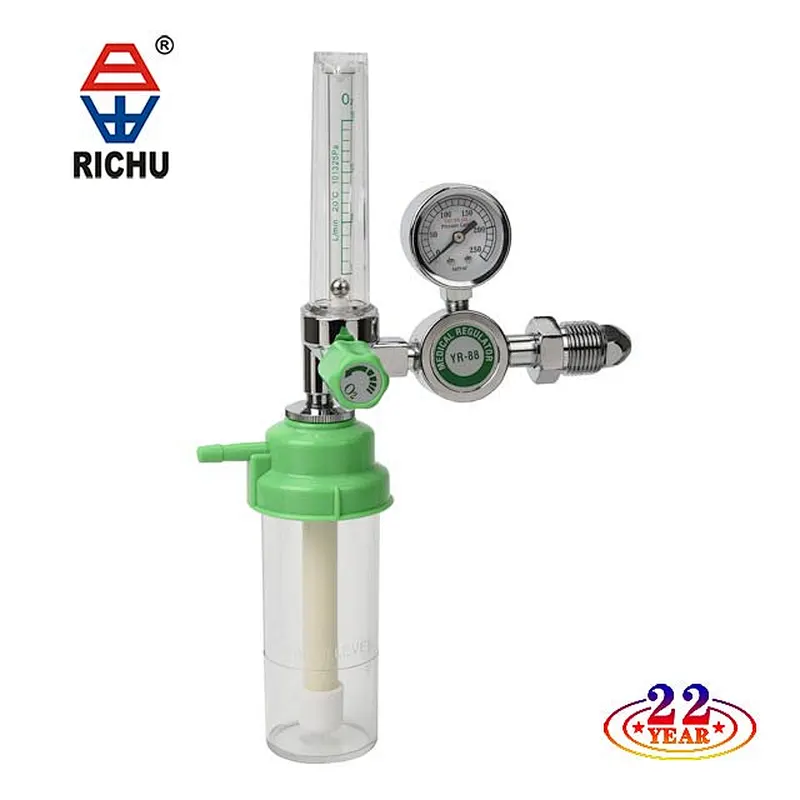

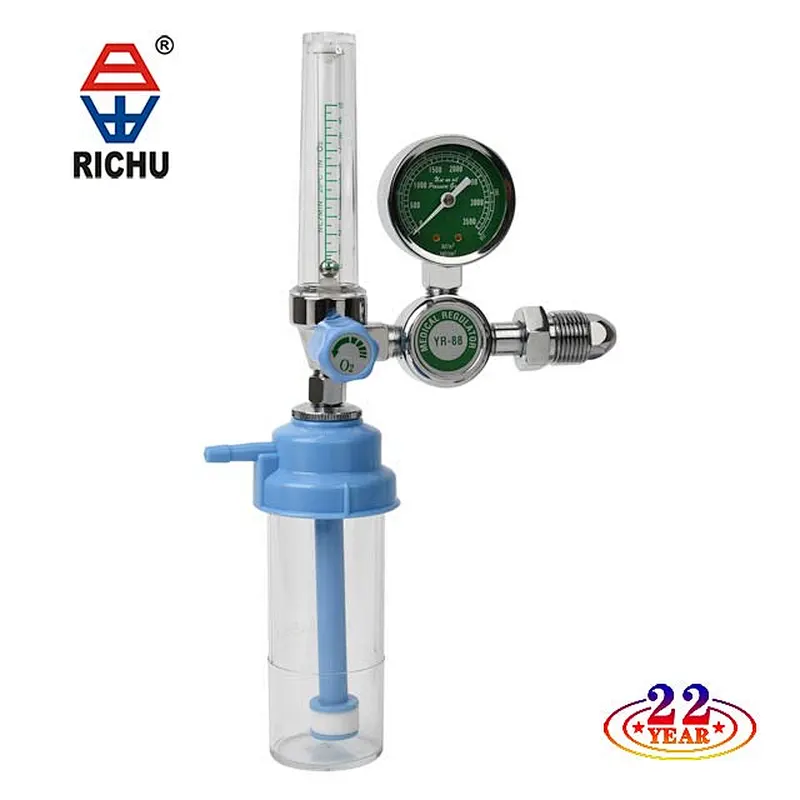

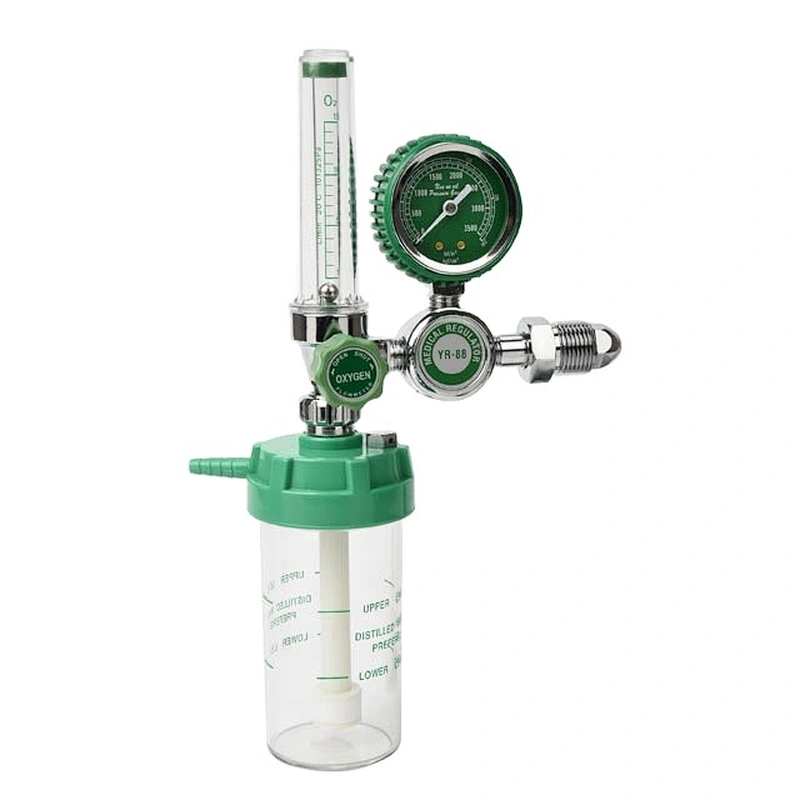

It is a medical oxygen regulator with inhaler. It can be used to supply oxygen for patient by connecting with oxygen cylinder.

Piston-type regulator with flowmeter and humidifier bottle

The Oxygen Regulator is designed to reduce the pressure and Control the flow of oxygen from an oxygen cylinder or tank.


The regulator uses its own pressure reducing device to reduce the oxygen pressure from the oxygen cylinder to a lower level(0.2~0.3Mpa),Which can be safety used by the patient,and then output the oxygen after being moistened by water.


Oxygen regulators are used to provide oxygen to patients who need to increase oxygen levels to improve their breathing conditions.

1. Brass body with chrome plated
2. Different from YR-86, the body of the oxygen regulator is at the back
3. Easy to read dual scal gauge with screw-on polycarbonate lens for durability.
4. Precision engineered pressure compensated design flowmeter for precise flow.
5. Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer cover for strength and 360 visibility
6.sintered metal inlet filter to trap impurities
7. Reliable external safety relief valve
8.Flow range:0-15LPM/0-10LPM.
9.3000PSI maximum inlet pressure
10.CE listed

GasInput PressureOutput PressureGauge Pressure Range(bar)
InputOutput
OXYGEN230bar0-4bar315bar6bar
230bar0-10bar315bar16bar
15Mpa0-1.25Mpa25Mpa2.5Mpa
20000Kpa0-1000Kpa28000Kpa1400Kpa
3000PSI/200kg/cm150PSI/0-12.5KG/CM4000PSI/350kg/cm200PSI/25kg/cm2
Company Information

Ningbo Kimpin Industrial Pte Ltd. is specialized in designing&manufacturing a wide range of industrial gas welding/cutting equipment,gauges,regulators, cutting/welding torches,safety apparatus,related accessories and medical therapy and suction devices.

As a professional supplier of welding equipments, we have built up our own experience in machining, quality control and testing in the past 20 years. The parts of our products are machined by CNC. Every product is 100% inspected and tested strictly before delivery.

Our brand"RICHU"is a famous brand in China. Our company has passedISO9001 Certification. The products are UL listed and CEmarked,the safety gas valves and gas shut-off valves are CSA listed. The design and construction have been treated to meet the full requirement of EN ISO standard, such as EN ISO 2503,EN ISO5172, EN730-1,EN ISO 562andEN ISO 837-1…etc.

FAQ

1. Q: Are you manufacturer or trader?

A: We are the most professional manufacturer in China for gas equipment. We have one factory producing gauges and regulators, and another factory producing cutting, welding torches and nozzles.

2.Q : Do you have UL to USA ?

A: Yes, we have UL certificate for gauges,regulators and torches.

3.Q: Do you have CE?

A: yes we have CE for gauges and some regulators.

4. Q: what is your quality control system?

A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.

5. Q: What’s the delivery time?

A: Usually it takes 30-35 working days after customer confirms the order.

6. Q: What'S your warranty terms ?

We offer 1 year warranty for materials for all our products For quality problem.

7. Q: About OEM ?

A: OEM is welcome, special packing design free.
