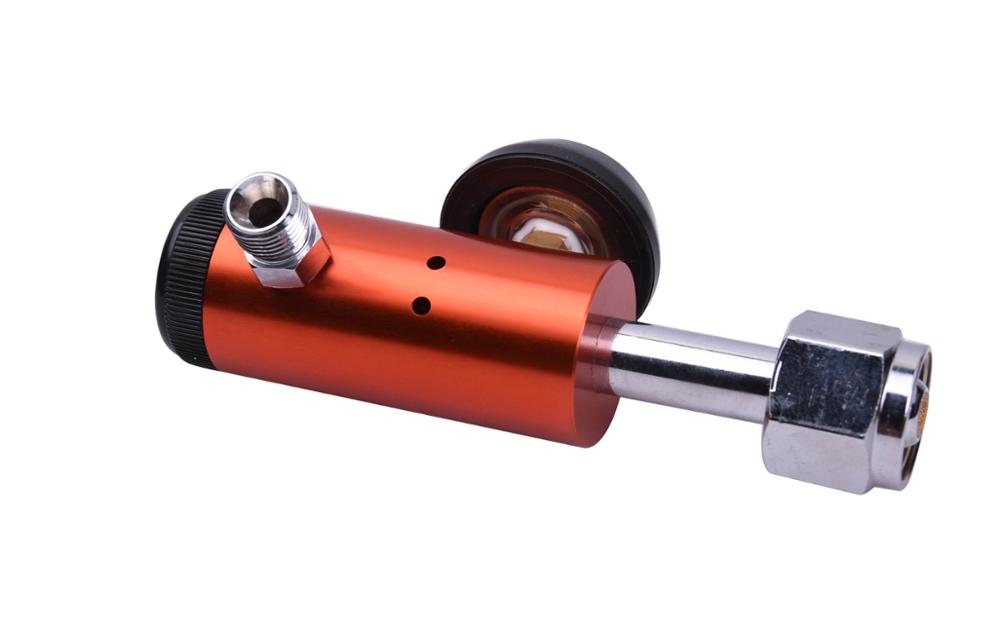

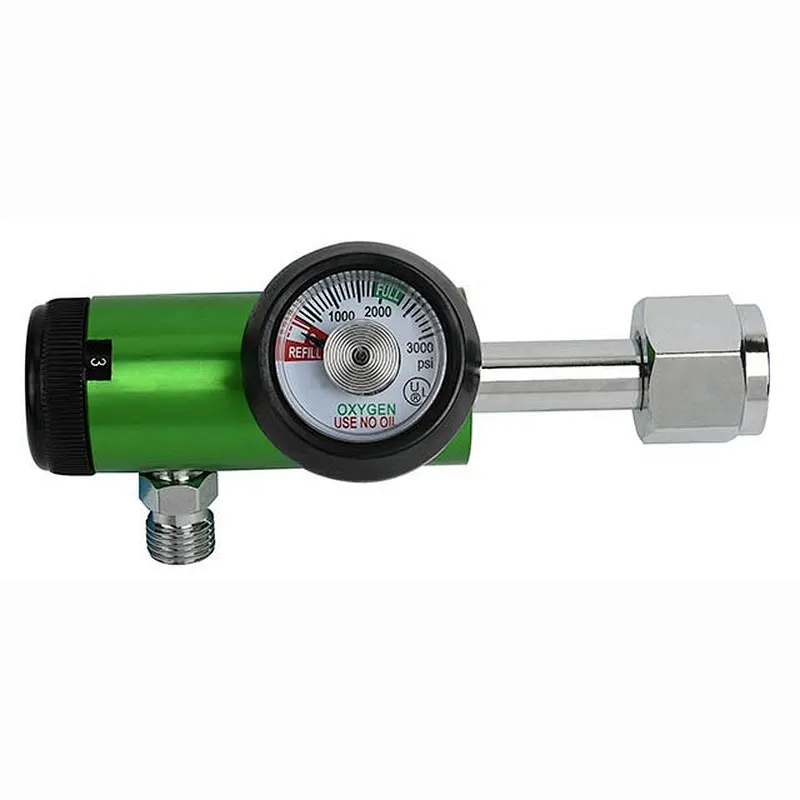

Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet
Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet

Medical Grade CGA 540 Oxygen Pressure Regulator With DISS or BARB Outlet

Model NO.
YR-108-540
Minimum order quantity:
1 piece
Port of Loading:
ningbo or shanghai
Quantity:
  • Warranty:1 year
  • Customized support:OEM, ODM, OBM
  • Place of Origin:Zhejiang, China
  • Brand Name:RICHU
  • Model Number:YR-108-540
  • Suitable gas:OXYGEN
  • Material:Aluminum/ Brass
  • USE:Medical
  • Application:Hospital
  • Type:Cylinder Regulator
  • Color:Green
  • Accuracy of Gauge:Class 2.5
  • Sample:Freely
  • Certificate:CE
  • OEM:Avalibale
  • Certification:CE

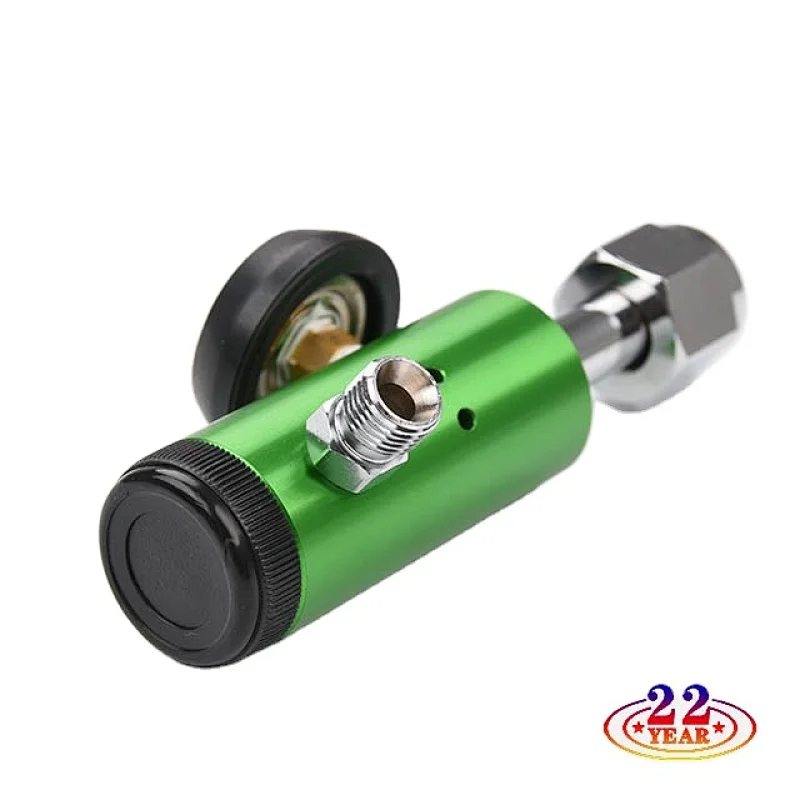

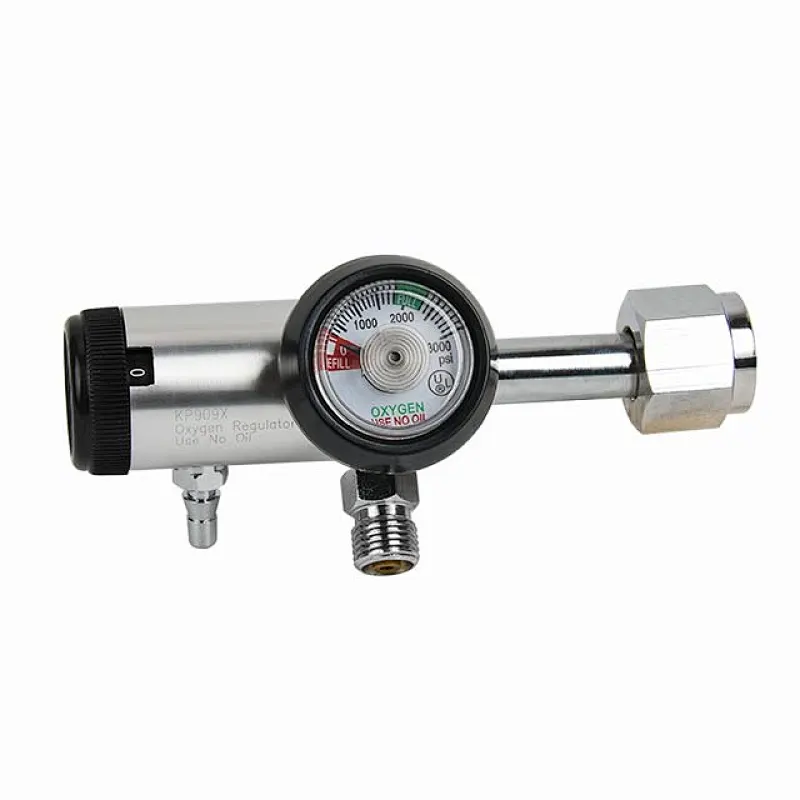

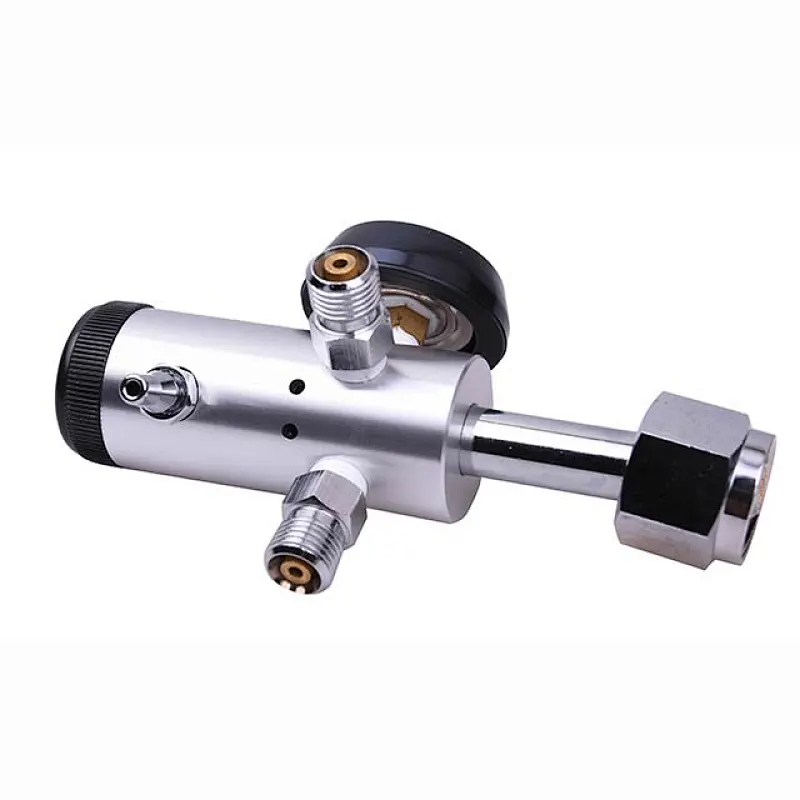

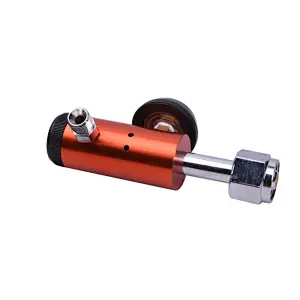

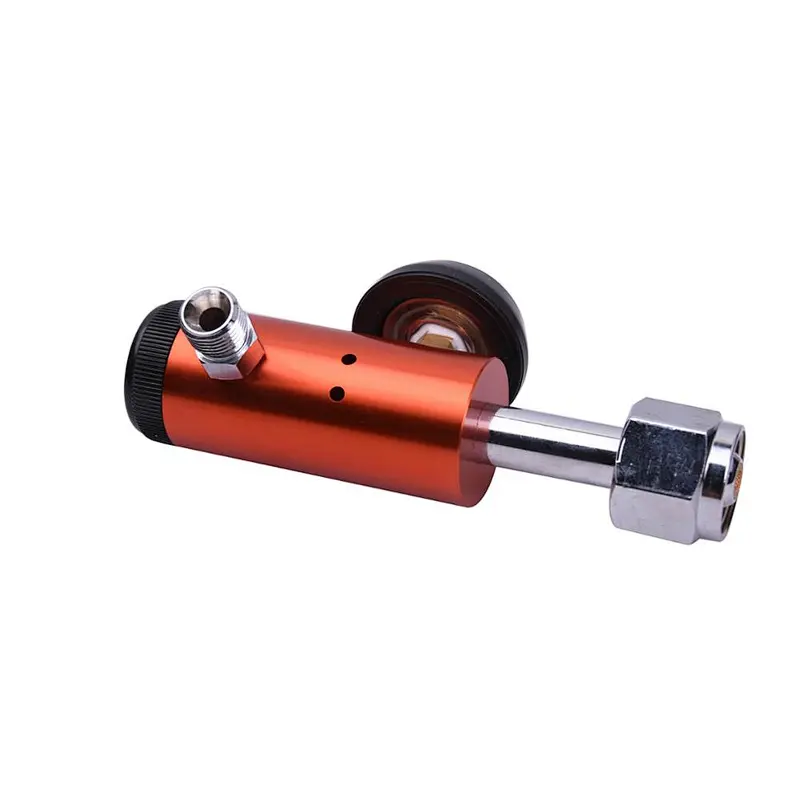

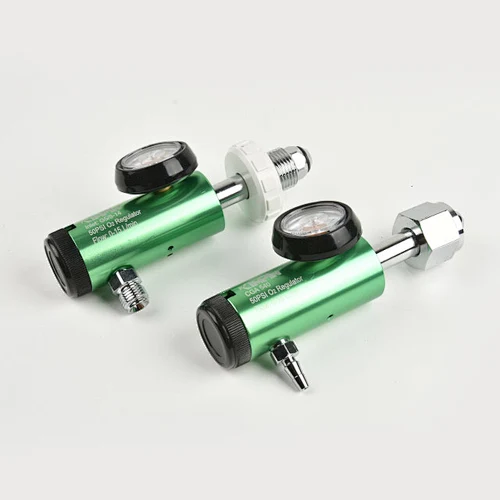

CGA540Medical Oxygen Regulator

· A compact and light weight oxygen regulator is designed to fit any oxygen tank,made of lightweight anodized aluminum with brass high pressure conduits;
· Easy To Install & Use,the regulator attaches to the top of an oxygen cylinder;
· 3000psi maximum inlet pressure;
· 1-1/2"diameter UL-listed gauge;
· Inlet:CGA540 standards, bullnose , DIN477 standard, CGA870 standard;
· Outlet:BARB outlet or DISS or with 2CV;
· Internal relief valve;
· Piston design regulator;
· Sintered bronze inlet filter for longer service life;
· Indicator shows the current LPM and can be read easily;
· Easy adjustment between 12 preset flow settings from 0-25 LPM with a simple turn of the knob;
· Alternative color;

Modeel NumberLength(MM)

Inlet Connection

Outlet

Connection

Packing

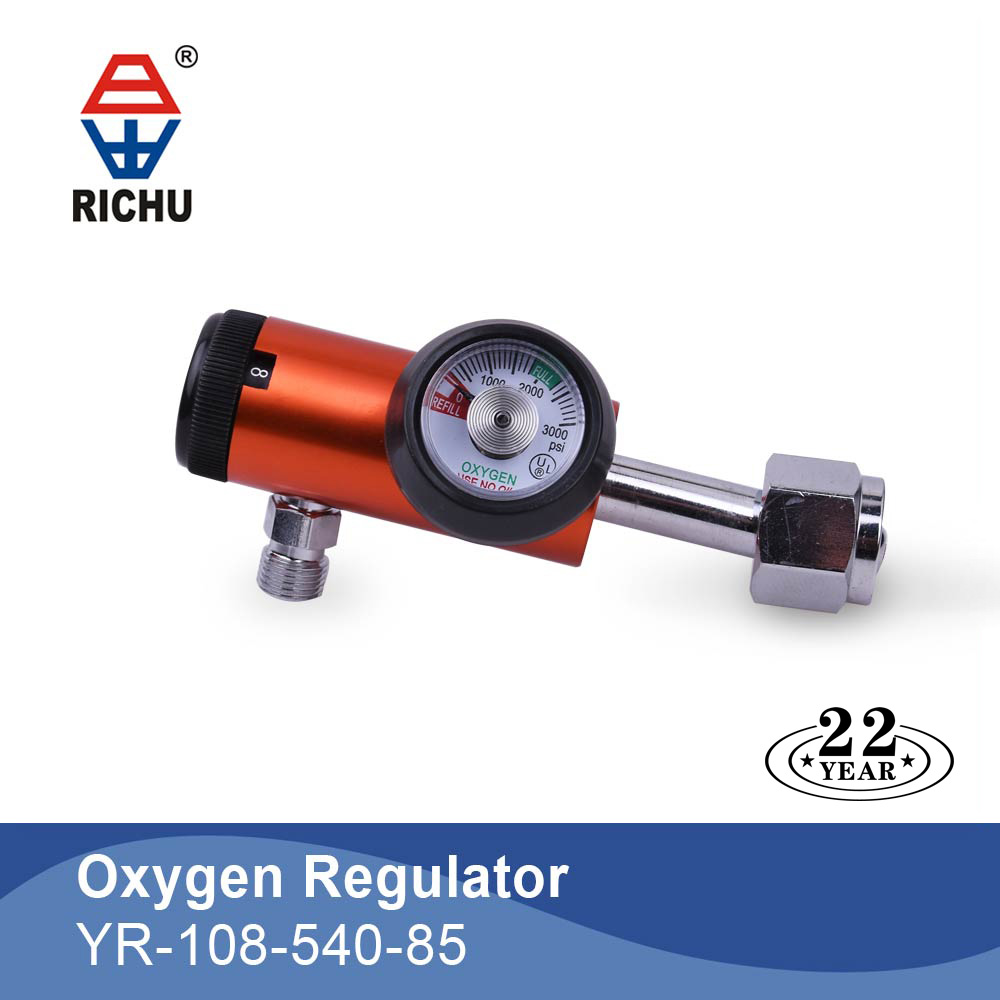

YR-108-540-8585MMCGA5409/16

20PCS/CTN

40.5X15.5X35.5CM

9/10KG

YR-108-540-2CV85MMCGA5408MM/G3/4
YR-108-540-G3/485MMCGA5408MM
YR-108-870-115115MMCGA8708MM
YR-108-870-120120MMCGA8708MM
YR-108-870-125125MMCGA8708MM
YR-108-870-165165MMCGA8709/16
YR-108-870-170170MMCGA8709/16
Company Information

Ningbo Kimpin Industrial Pte Ltd. is specialized in designing&manufacturing a wide range of industrial gas welding/cutting equipment,gauges,regulators, cutting/welding torches,safety apparatus,related accessories and medical therapy and suction devices.

As a professional supplier of welding equipments, we have built up our own experience in machining, quality control and testing in the past 20 years. The parts of our products are machined by CNC. Every product is 100% inspected and tested strictly before delivery.

Our brand""is a famous brand in China. Our company has passedISO9001 Certification. The products are UL listed and CEmarked,the safety gas valves and gas shut-off valves are CSA listed. The design and construction have been treated to meet the full requirement of EN ISO standard, such as EN ISO 2503,EN ISO5172, EN730-1,EN ISO 562andEN ISO 837-1…etc.

FAQ

1. Q: Are you manufacturer or trader?

A: We are the most professional manufacturer in China for gas equipment. We have one factory producing gauges and regulators, and another factory producing cutting, welding torches and nozzles.

2.Q : Do you have UL to USA ?

A: Yes, we have UL certificate for gauges,regulators and torches.

3.Q: Do you have CE?

A: yes we have CE for gauges and some regulators.

4. Q: what is your quality control system?

A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.

5. Q: What’s the delivery time?

A: Usually it takes 30-35 working days after customer confirms the order.

6. Q: What'S your warranty terms ?

We offer 1 year warranty for materials for all our products For quality problem.

7. Q: About OEM ?

A: OEM is welcome, special packing design free.
