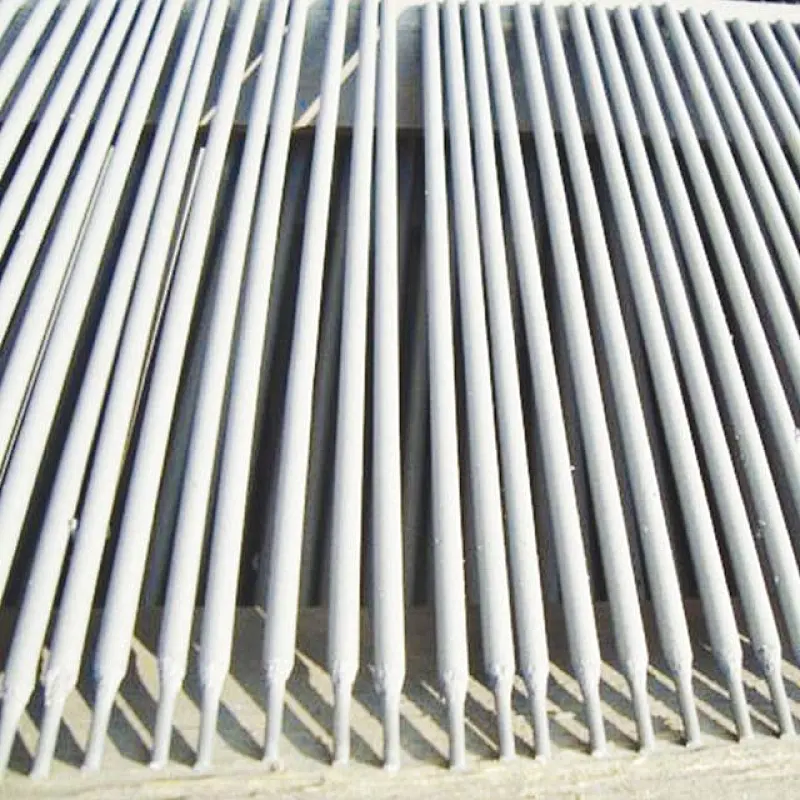

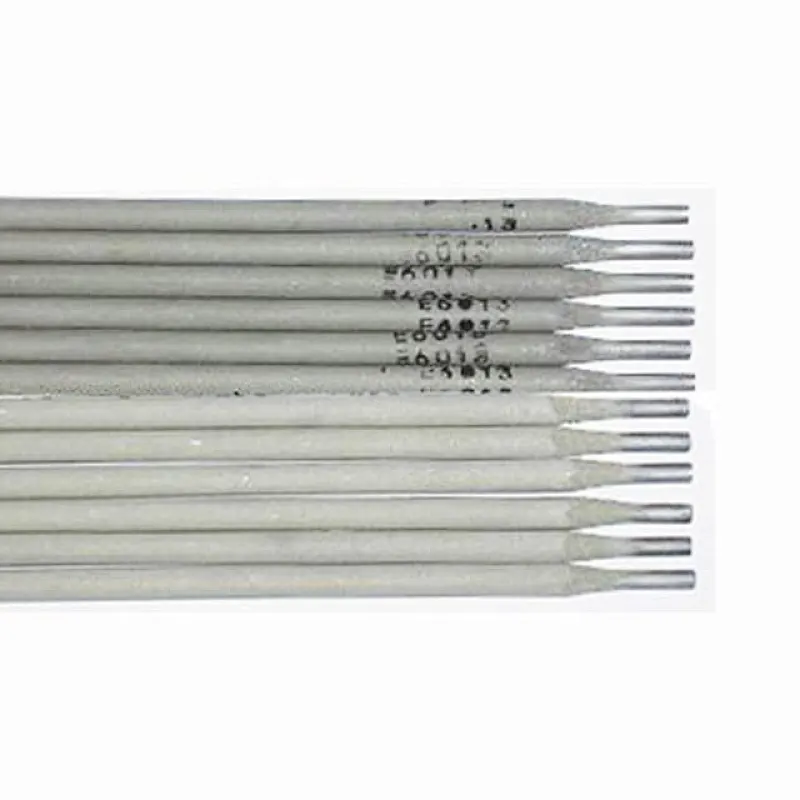

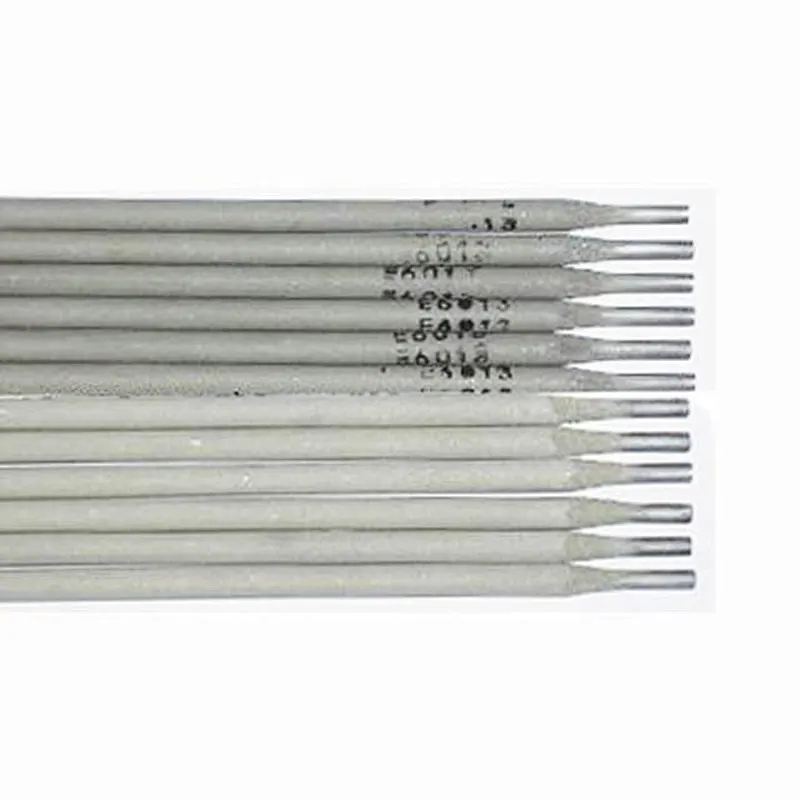

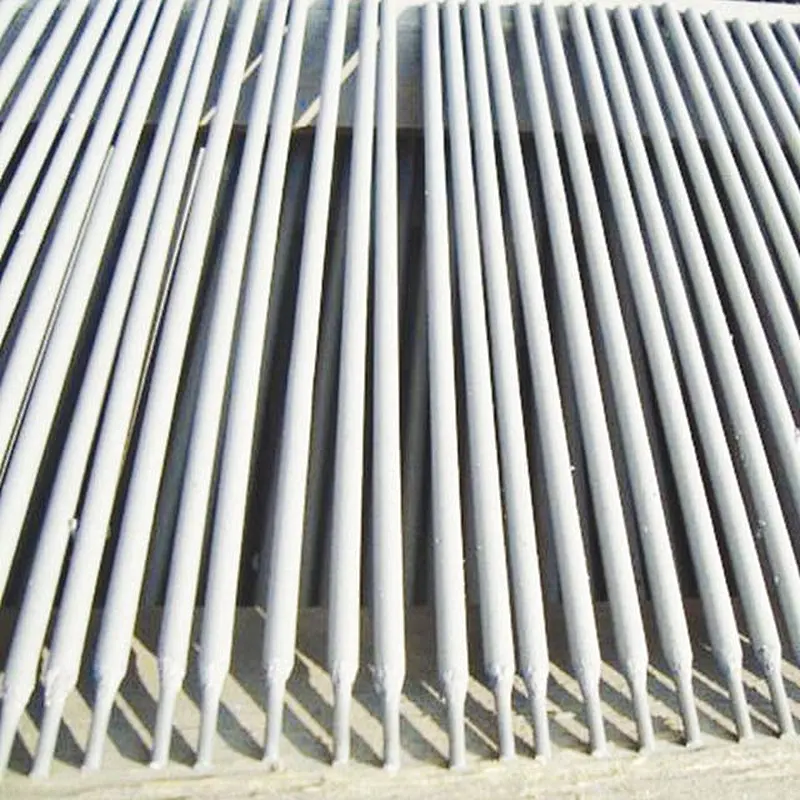

carbon steel stick welding electrode 6013 for welding carbon steel
Applications:
It is suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass.
Characteristics:
6013 is a rutile type electrode. Can be welding by both AC & DC power source and can be for all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc.
Attention:
In generally, don't need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 150℃-170℃ for 0.5-1 hour.
Welding Positions:
PA, PB, PC, PD, PE, PF
Chemical Composition of All Weld Metal: (Wt. %)
Items | C | Mn | Si | S | P | Ni | Cr | Mo | V |
Require-ments | ≤0.10 | 0.32-0.55 | ≤0.30 | ≤0.030 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
Typical Results | 0.08 | 0.37 | 0.18 | 0.020 | 0.025 | 0.030 | 0.035 | 0.005 | 0.004 |
Mechanical Properties of All Weld Metal:
Items | Rm/MPa | Rel/Rp0.2 /MPa | A/% | KV2 (0℃) /J |
Requirements | 440-560 | ≥355 | ≥22 | ≥47 |
Typical Results | 500 | 430 | 27 | 80 |
X-ray Radiographic Inspection:
Level Ⅱ
Typical Operating Procedures:(AC or DC)
Diameter (mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 5.8 |
Length (mm) | 300 | 300 | 350 | 400 | 400 | 400 |
Current (A) | 40-70 | 50-90 | 80-130 | 150-200 | 180-240 | 220-280 |
Classification Of Society Certification:
Ship Inspection Agency | ABS | BV | CCS | DNV.GL | LR | NK | BKI | CWB |
Recognition Level | 2 | 2 | 2 | 2 | 2m | KMW2 | 2 | E4313 |
