Test:100% leak testing, pressure test, function test and visual inspection
Certification:N/A

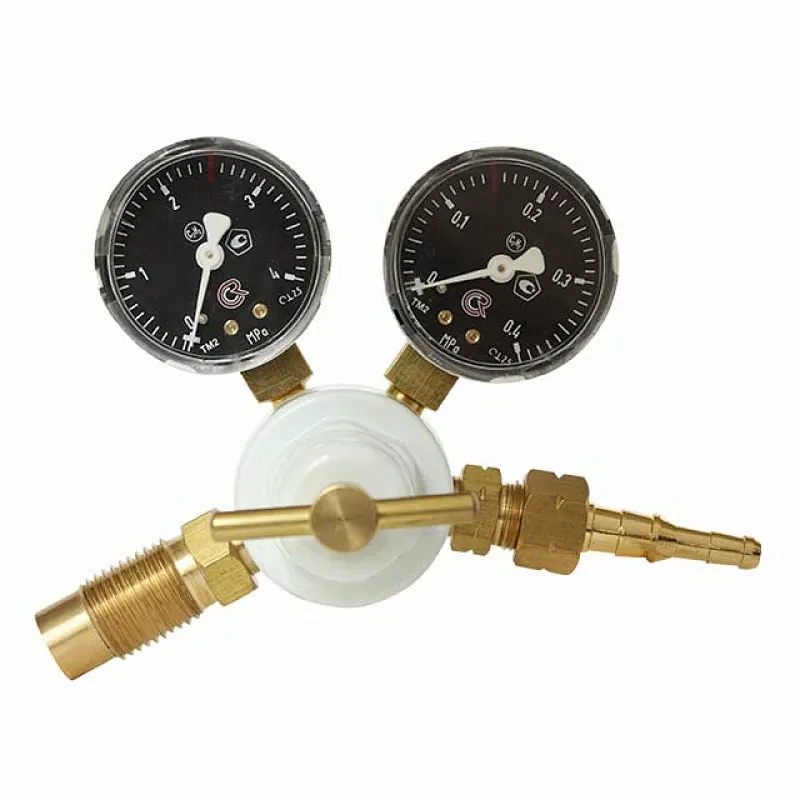

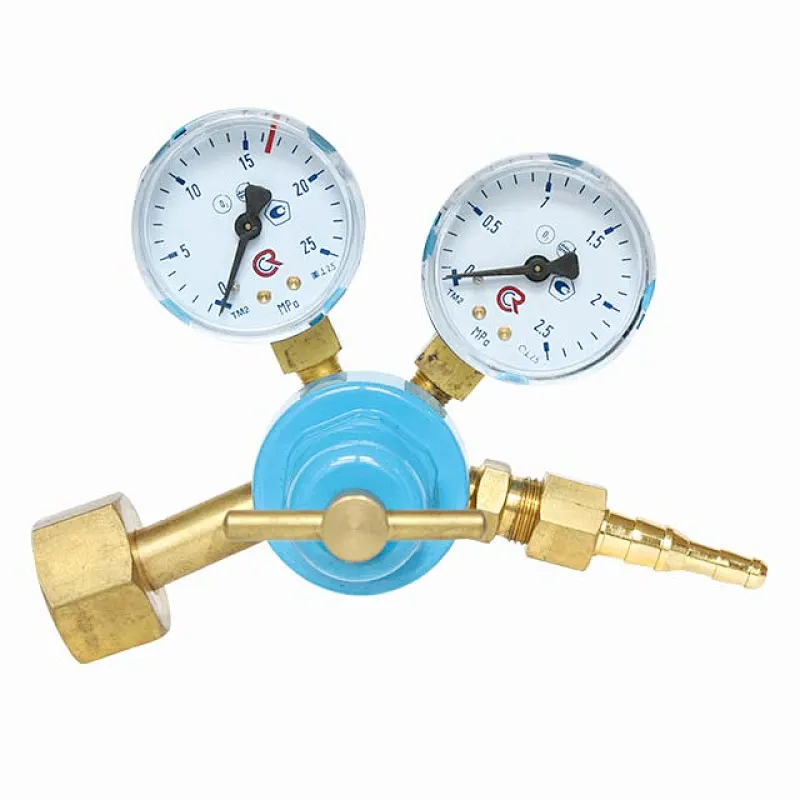

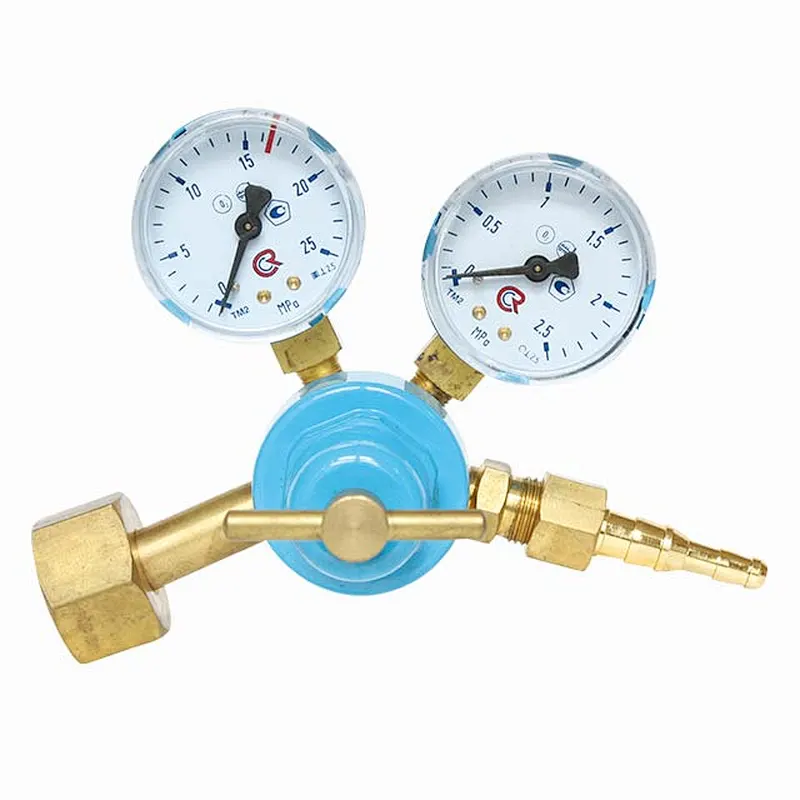

Russian Type Brass Body LPG Regulator BIIO-5
Features:
1. Designed especially for Russian market.
2. Forged special brasscylindrical body.
3. The Bonnet made by cast Aluminum alloy.
4. Sintered metal inlet filter to trap impurities.
5.No soldered joints, for easy maintenance.
6. Gauges meet EN ISO 5171 and regulator conformity to the standard EN ISO 2503.
7. 100% leak testing, pressure test,function test and visual inspection.
Specification:
·
Model
OR-57B
AR-57B
LR-57B
TR-57B
Gas
Oxygen
Acetylene
Propane
CO2
High pressure gauge(MPa)
0 - 25
0-4
-
0-25
Max inlet pressure(MPa)
15
2.5
2.5
15
Working pressure (MPa)
0-1.25
0-0.15
0-0.4
0-0.6
Rated Flow (m3/h)
40
5
5
15
Low pressure gauge(MPa)
0-2.5
0-0.4
0-0.6
0-1
Inlet connector
G3/4 Female
Frame
W21.8x1/14LH
G3/4 Female
Outlet connector
M16*1.5 RH
M16*1.5LH
M16*1.5 LH
M16*1.5 RH
Packing/CTN (PCS)
12
12
12
12
Carton size(MM)
340*260*290
340*260*290
340*260*290
340*260*290
·
Company Information
Ningbo Kimpin Industrial Pte Ltd. is specialized in designing&manufacturing a wide range of industrial gas welding/cutting equipment,gauges,regulators, cutting/welding torches,safety apparatus,related accessories and medical therapy and suction devices.
As a professional supplier of welding equipments, we have built up our own experience in machining, quality control and testing in the past 20 years. The parts of our products are machined by CNC. Every product is 100% inspected and tested strictly before delivery.
Our brand"RICHU"is a famous brand in China. Our company has passed ISO9001 Certification. The products are UL listed and CE marked,the safety gas valves and gas shut-off valves are CSA listed. The design and construction have been treated to meet the full requirement of EN ISO standard, such as EN ISO 2503,EN ISO5172, EN730-1,EN ISO 562 and EN ISO 837-1…etc.
With sincere earnestness and honesty, we are sure that we will impress our customers with our good quality and excellent services. We are looking forward to establishing long term business relationships with worldwide customers.
FAQ
1. Q: Are you manufacturer or trader?
A: We are the most professional manufacturer in China for gas equipment. We have one factory producing gauges and regulators, and another factory producing cutting, welding torches and nozzles.
2.Q : Do you have UL to USA ?
A: Yes, we have UL certificate for gauges,regulators and torches.
3.Q: Do you have CE?
A: yes we have CE for gauges and some regulators.
4. Q: what is your quality control system?
A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.
5. Q: What’s the delivery time?
A: Usually it takes 30-35 working days after customer confirms the order.
6. Q: What'S your warranty terms ?
We offer 1 year warranty for materials for all our products For quality problem.
